Key Features & Advantages
- 6,000 lumens color/white brightness – vivid in ambient light
- Native WUXGA + 4K Enhancement & HDR for ultra-detailed visuals
- 30,000-hour sealed laser – zero maintenance, eco-mode efficiency
- Short-throw 0.5–0.7:1 + 1.4x zoom, wide lens shift & corner correction
- HDBaseT, HDMI (2 in/1 out), 10W speaker, split-screen & edge blending
- Optional PixAlign camera + NFC for fast auto-calibration & stacking
Best Applications
- Interactive classrooms & university lecture halls
- Corporate boardrooms & training rooms
- Museum exhibits & immersive displays
- Golf simulators & sports simulation setups
- Houses of worship & retail showrooms

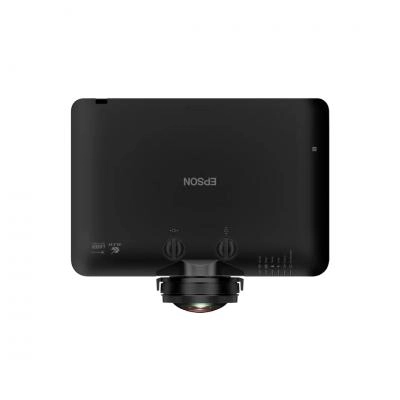

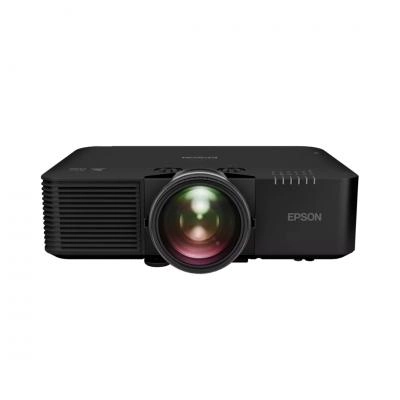

The Epson CB-L695SE is an entry-level 3LCD laser projector specifically designed for primary and secondary school basic classrooms, rural education stations, and community training centers. It focuses on cost-effectiveness, stability, and ease of operation, inheriting Epson’s consistent 3LCD color accuracy and maintenance-free laser light source to meet daily teaching needs such as courseware display, video playback, and simple interactive demonstrations. All parameters are sourced from Epson official technical documents and industry authoritative verification, providing accurate and reliable references for educational institutions’ procurement, equipment management, and teaching application planning.
Category | Subcategory | Specifications |
Basic Information | Model Name | CB-L695SE (China Model); EB-L695SE (Global Model) |
 | Product Type | Entry-Level 3LCD Laser Projector for Basic Education |
 | Projection System | 3LCD Technology (3-Chip RGB Liquid Crystal Shutter System) |
 | Dimensions (W×D×H) | 370×275×110 mm (without lens/feet); 370×290×128 mm (max with feet installed) |
 | Weight | Approx. 5.2 kg (net weight, without lens) |
 | Operating Temperature | 0°C – 45°C; Operating Altitude: 0m – 3048m (High-Altitude Mode for >1500m) |
 | Warranty | 3-Year Whole Machine Warranty; 20,000hrs Laser Source Warranty (Standard Mode) |
Display Performance | Native Resolution | WUXGA (1920×1200), 2.304 million pixels |
 | Enhanced Technology | 4K Signal Acceptance, supports 4K/60Hz input signal |
 | Aspect Ratio | 16:10 (compatible with 4:3/16:9 via digital scaling) |
 | Color Reproduction | 10-bit color processing, up to 1.07 billion colors; 88% NTSC gamut |
 | Color Modes | Dynamic, Presentation, Cinema, Natural |
Brightness & Contrast | White Light Output (ISO) | 5,500 lumens (Standard); 3,850 lumens (Eco) |
 | Color Light Output | 5,500 lumens (IDMS 15.4 certified) |
 | Dynamic Contrast | Over 2,000,000:1 (Dynamic Mode, Auto Aperture On) |
Optical System | LCD Panel | 0.67-inch inorganic poly-silicon TFT active matrix |
 | Light Source | Laser diode array + reflective fluorescent wheel |
 | Light Source Life | 20,000hrs (Standard); 30,000hrs (Eco), maintenance-free |
Lens & Installation | Lens Type | Manual zoom/focus lens (center-aligned) |
 | Zoom Ratio | 1.1-1.4x (optical) |
 | Lens Shift | Vertical: -20%~+20%; Horizontal: -10%~+10% (manual) |
 | Projection Size | 30″-200″ (diagonal); Projection Distance: 0.85m-6.0m |
 | Installation Modes | Front/Rear/Ceiling/Floor; 360° free-angle installation |
Connectivity | Digital Interfaces | HDMI 2.0 (HDCP 2.3)×2 |
 | Network | RJ45 (Gigabit)×1; Built-in Wi-Fi 5 (IEEE 802.11ac) |
 | Control | RS-232C×1; Web-based control |
Power & Operation | Power Supply | AC 100-240V±10%, 50/60Hz |
 | Power Consumption | 280W (Standard); 196W (Eco) |
 | Noise Level | 33dB (Standard); 23dB (Eco) |
 | Startup Time | ≤12 seconds; supports instant cooling |
