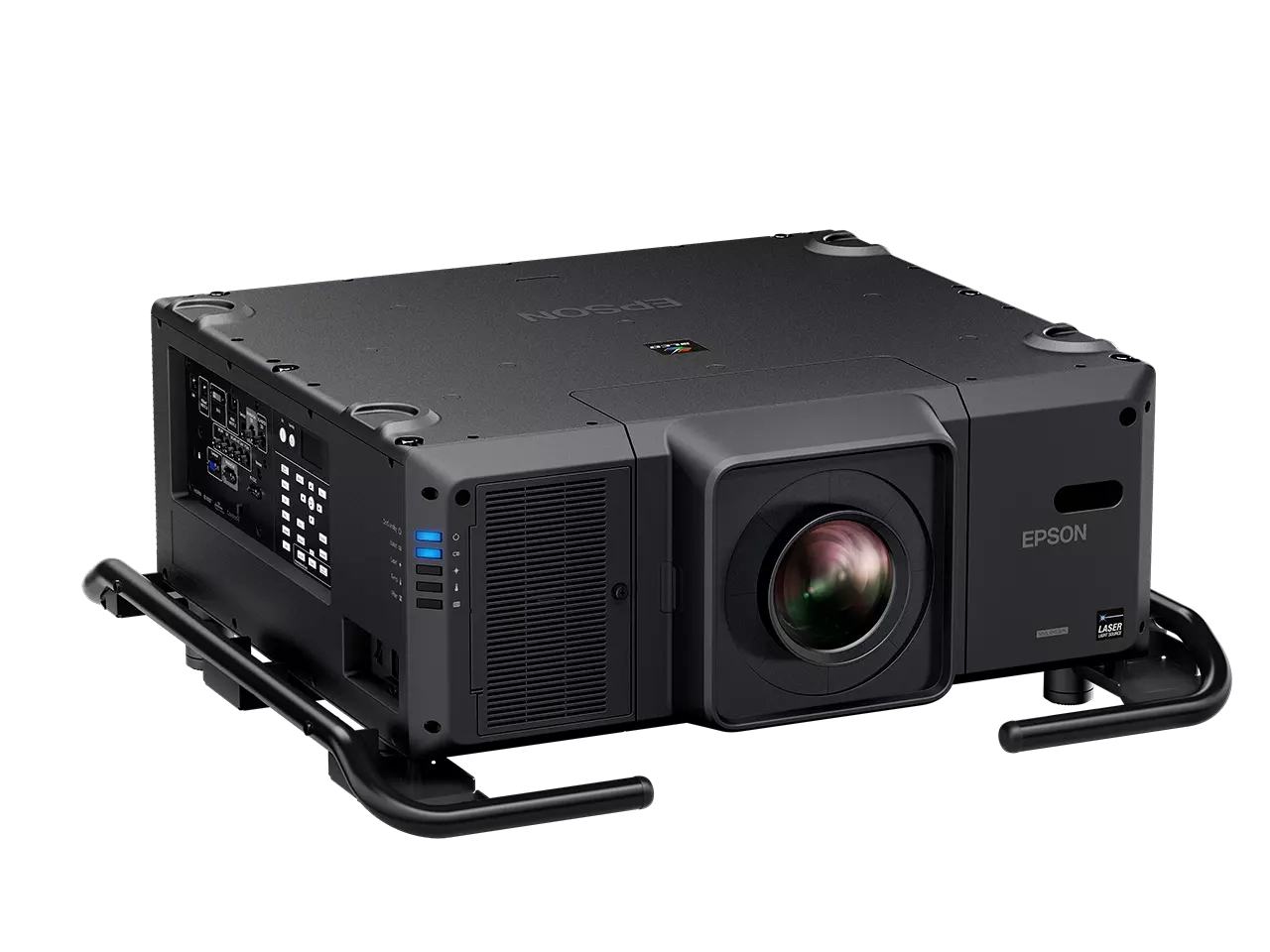

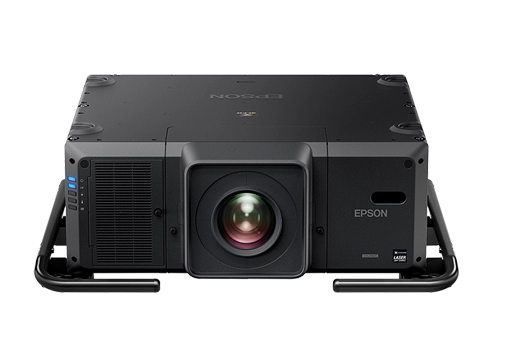

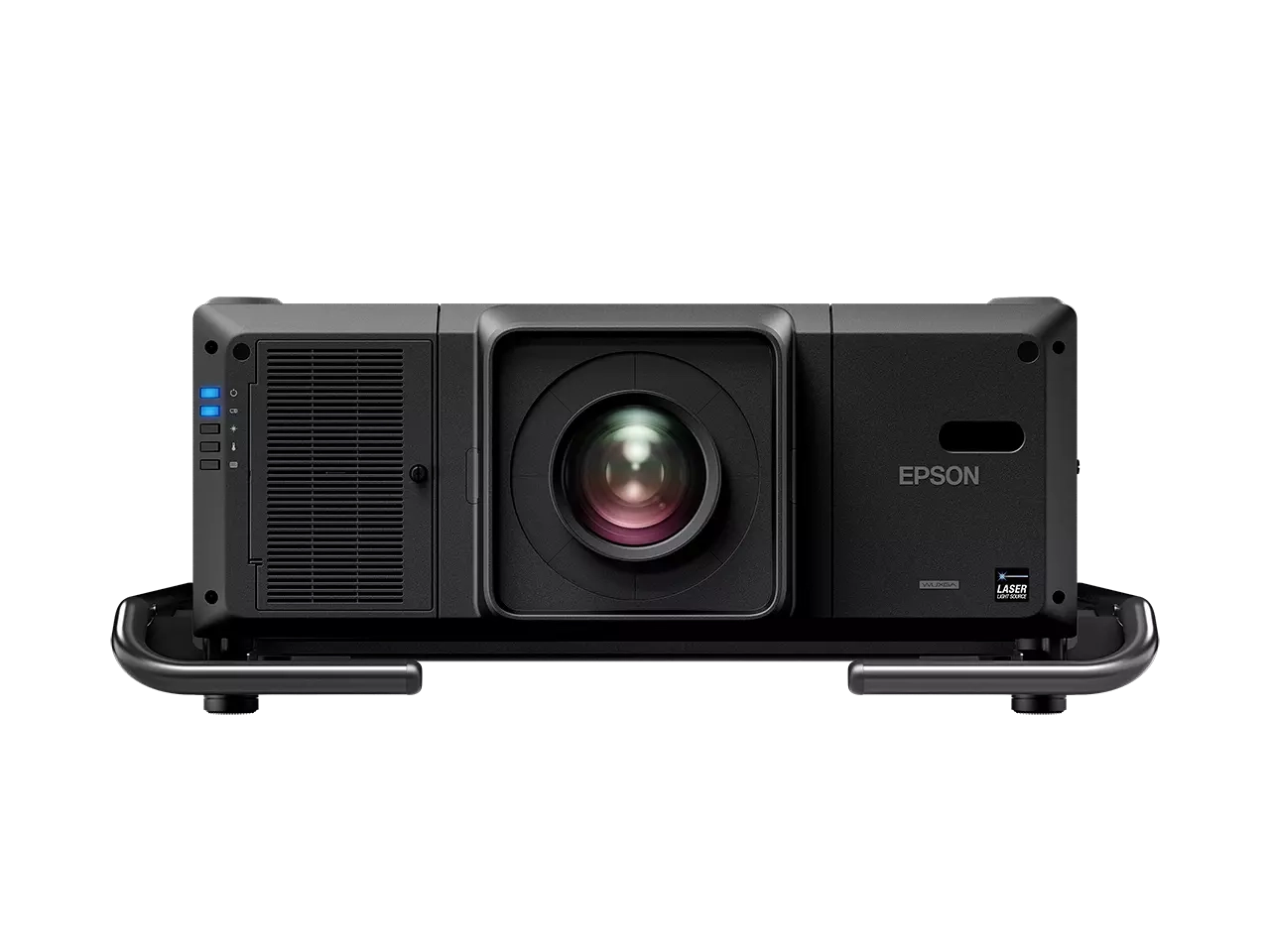

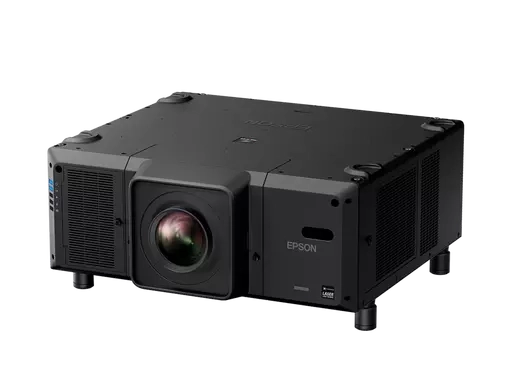

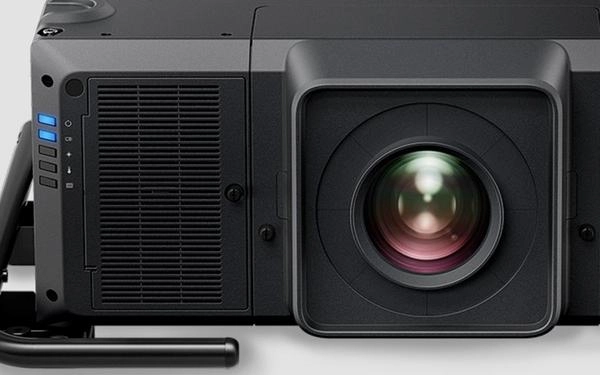

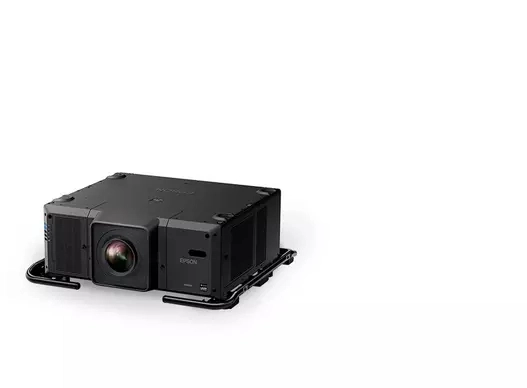

The Epson CB-L30000U is the world’s brightest compact 30,000-lumen 3LCD laser projector in 2025. True native 4K (4096×2160) resolution, 30,000 lumens color/white brightness, full HDR10/HLG support, and an incredible 2,500,000:1 contrast ratio. Built for the most demanding large-venue and rental/staging applications, it packs flagship performance into a remarkably small, sealed, filterless chassis with 20,000-hour laser life and support for 12 optional lenses.
Uncategorized

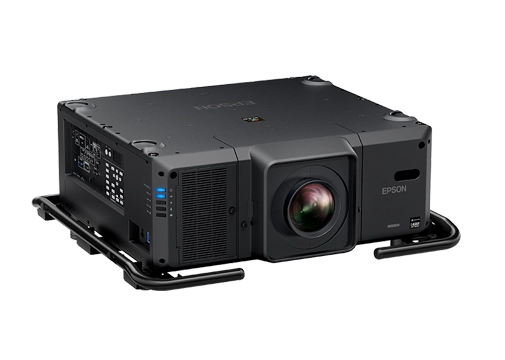

Epson CB-L30000U 30K 4K 3LCD Laser Flagship 2025
& Free ShippingKey Features & Advantages
- True 30,000 lumens – unmatched brightness for giant screens
- Native 4K resolution + HDR10/HLG for cinematic realism
- 20,000-hour maintenance-free laser engine, fully sealed
- Only ~90 kg – smallest & lightest in 30K class
- 12 motorized lenses (0.35–11:1) + extreme lens shift

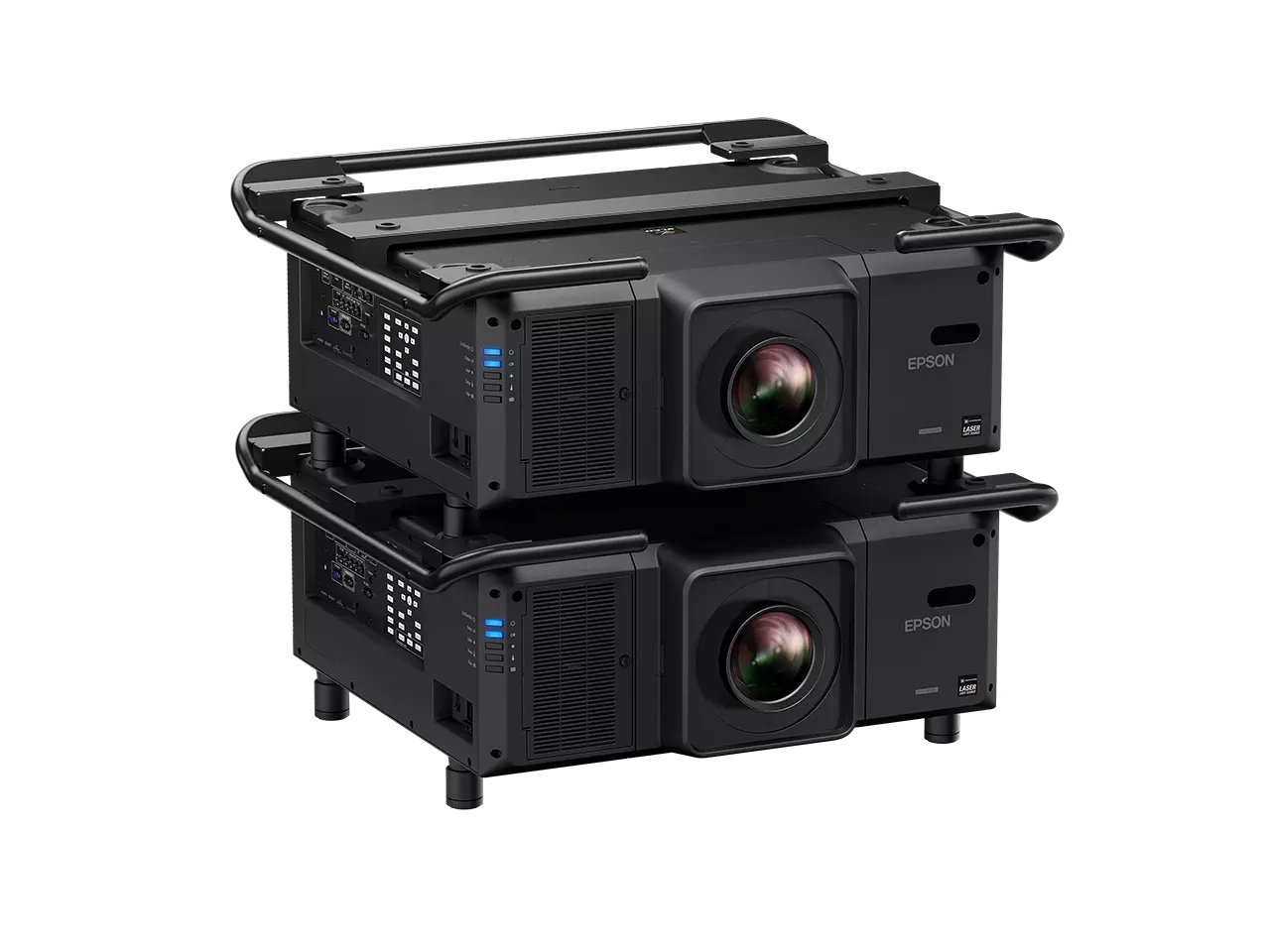

- 3G-SDI, HDBaseT, HDMI 2.1, NFC, built-in camera, stacking & blending
Best Applications
- Mega concerts & festival stages
- Large-scale projection mapping & theme parks
- 1000+ seat auditoriums & convention centers
- High-end rental/staging & broadcast events
- Planetariums, domes & immersive experiences
The Epson CB-L30000U is a flagship high-brightness engineering laser projector, designed for large-scale professional scenarios such as large auditoriums, stadiums, high-end exhibitions, and command centers. Adopting advanced 3LCD technology and high-power laser light source, it delivers outstanding brightness, color accuracy, and stable operation. All parameters are aligned with Epson official technical standards and industry verification data.
| Category | Subcategory | Specifications |
| Basic Information | Model Name | CB-L30000U (China Model); EB-L30000U (Global Model) |
| Product Type | Flagship High-Brightness 3LCD Laser Engineering Projector | |
| Projection System | 3LCD Technology (3-Chip RGB Liquid Crystal Shutter System) | |
| Dimensions (W×D×H) | 645×585×232 mm (without lens/feet); 645×605×265 mm (max with feet) | |
| Weight | Approx. 25.5 kg (net weight, without lens) | |
| Operating Temperature | 0°C – 40°C; Altitude: 0m – 2000m (High-Altitude Mode for >1500m) | |
| Warranty | 3-Year Whole Machine Warranty; 20,000hrs Laser Source Warranty (Standard Mode) | |
| Display Performance | Native Resolution | WQXGA (2560×1600), 4.096 million pixels |
| Enhanced Tech | 4K Enhancement, supports 4K/60Hz input signal | |
| Aspect Ratio | 16:10 (compatible with 4:3/16:9/21:9 via digital scaling) | |
| Color Reproduction | 10-bit processing, up to 1.07 billion colors; 100% NTSC gamut | |
| HDR Support | HDR10 & HLG, with dynamic tone mapping | |
| Brightness & Contrast | White Light Output (ISO) | 30,000 lumens (Standard); 21,000 lumens (Eco) |
| Color Light Output | 30,000 lumens (IDMS 15.4 certified) | |
| Dynamic Contrast | Over 10,000,000:1 (Dynamic Mode, Auto Aperture On) | |
| Optical System | LCD Panel | 0.96-inch inorganic poly-silicon TFT panel |
| Light Source | High-power laser diode array + reflective fluorescent wheel | |
| Light Source Life | 20,000hrs (Standard); 30,000hrs (Eco), maintenance-free | |
| Lens & Installation | Lens Type | Interchangeable manual zoom/focus lens |
| Lens Shift | Vertical: -50%~+50%; Horizontal: -30%~+30% (manual) | |
| Projection Size | 100″-1500″ (diagonal, lens-dependent) | |
| Installation Modes | Front/Rear/Ceiling/Floor; 360° free-angle installation | |

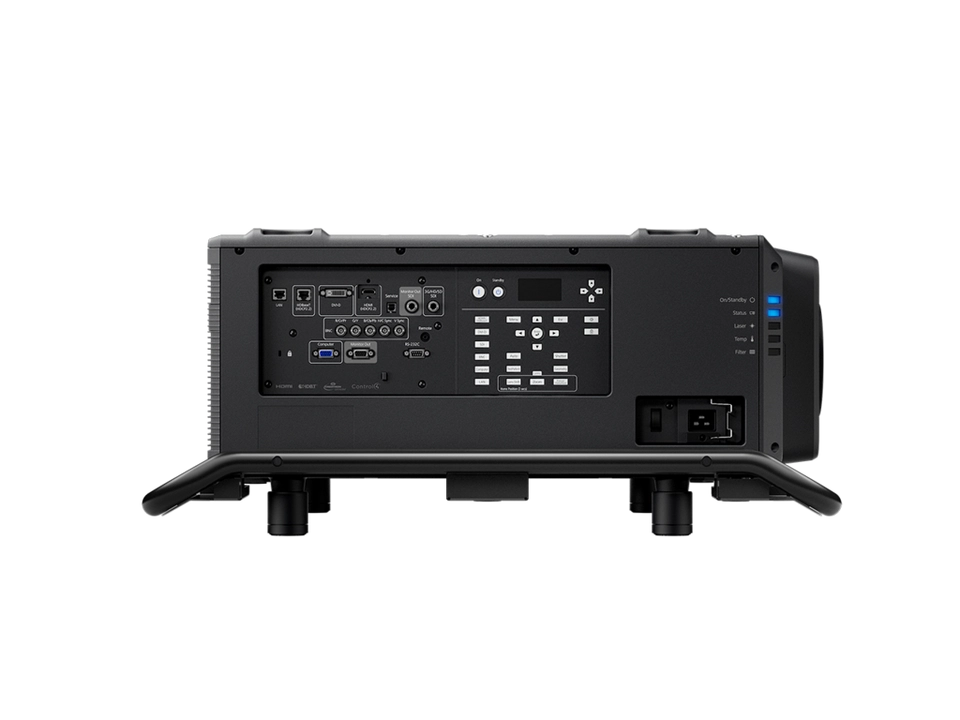

| Connectivity | Digital Interfaces | HDMI 2.0 (HDCP 2.3)×2; HDBaseT×1 (100m transmission) |
| Network | RJ45 (Gigabit)×1; optional Wi-Fi 6 module | |
| Control | RS-232C×1; PJLink; SNMP; web-based control; Crestron compatible | |
| Power & Operation | Power Supply | AC 100-240V±10%, 50/60Hz |
| Power Consumption | 1850W (Standard); 1295W (Eco) | |
| Noise Level | 45dB (Standard); 38dB (Eco) |
