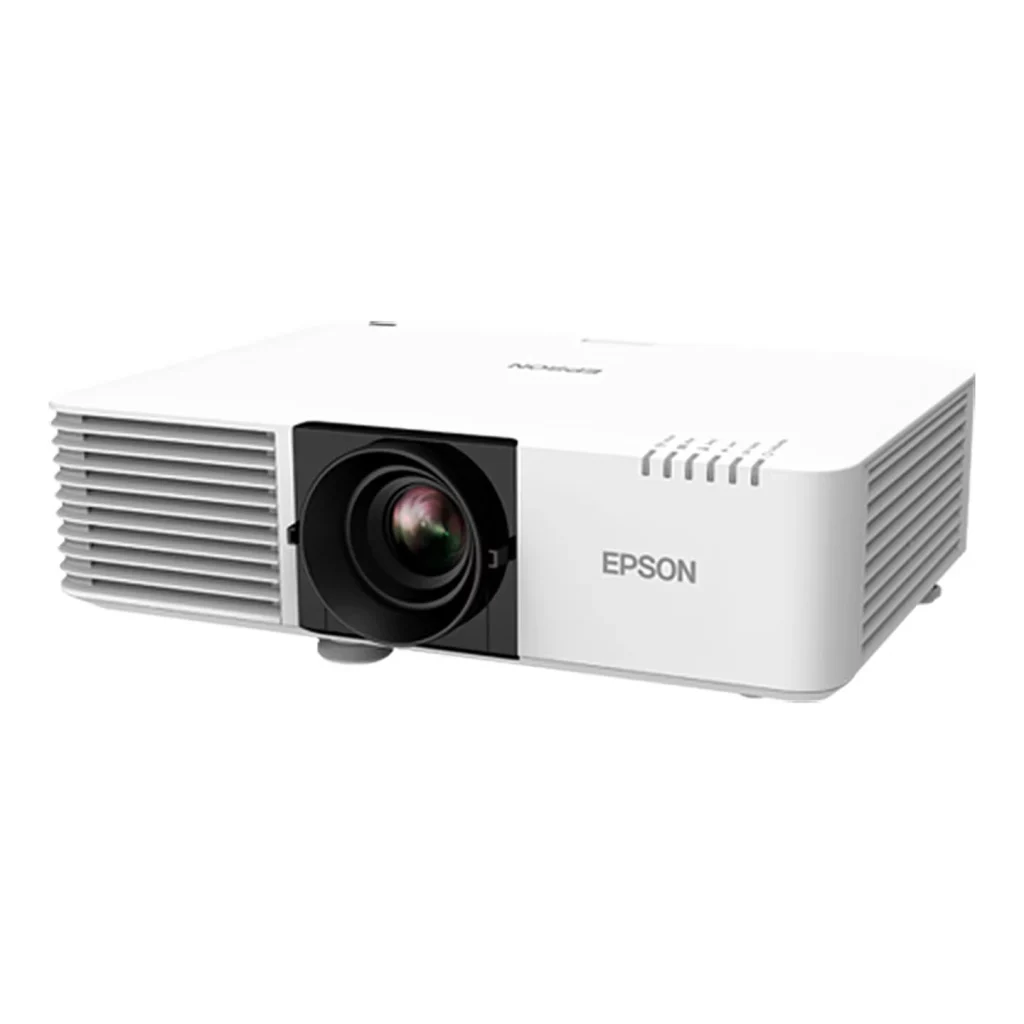

Epson CB-L520U 5200lm 3LCD Laser Projector for Mid-Size B-End Spaces

Epson CB-L520U 5200lm 3LCD Laser Projector for Mid-Size B-End Spaces

& Free Shipping

The Epson CB-L520U is a high-reliability 5200-lumen WUXGA 3LCD laser projector, optimized for mid-size B-end scenarios including college classrooms, enterprise medium conference rooms, and professional training centers. It integrates a maintenance-free sealed laser engine, 4K Enhancement technology, and HDR10 support, with a compact white chassis (~8.0kg) that fits ceiling installations seamlessly. Boasting 25,000-hour laser life, multi-mode connectivity, and flexible installation, it delivers stable, clear audio-visual performance for high-frequency education and business use, minimizing long-term operating costs.

Category: Tag:
Guaranteed Safe Checkout

Free shipping on orders over $50!

  • No-Risk Money Back Guarantee!
  • No Hassle Refunds
  • Secure Payments

Description

Key Features & Advantages

  1. 5200 ISO lumens (white/color) – crisp displays in mid-size bright spaces without blackout curtains.
  2. Native WUXGA (1920×1200) + 4K Enhancement – sharp details for lectures, data presentations, and video content.
  3. 25,000-hour sealed laser engine – maintenance-free, reducing B-end operational and replacement costs.
  4. ±50% vertical & ±20% horizontal lens shift – easy deployment in irregular mid-size venues.
  5. Wi-Fi 6 + HDBaseT + dual HDMI 2.0 – seamless wired/wireless multi-device collaboration.
  6. 10W speaker + HDR10/HLG – immersive audio-visual experience for extended meetings/lectures.
23af77e526b359be.jpg 1024x1024

Best Applications

  1. College classrooms & vocational training auditoriums
  2. Enterprise medium conference rooms & hybrid collaboration spaces
  3. Government briefing rooms & professional training centers
  4. Mid-size event venues & community cultural halls
  5. Corporate training rooms & museum exhibition spaces
CategorySubcategorySpecifications
Basic InformationModel NameCB-L520U (China Model); EB-L520U (Global Model)
 Product TypeMid-Range 3LCD Laser Projector for Mid-Size Education & Business
 Projection System3LCD Technology (3-Chip RGB Liquid Crystal Shutter System)
 Dimensions (W×D×H)440×339×138 mm (without lens/feet); 440×350×155 mm (max with feet installed)
 WeightApprox. 8.0 kg (net weight, without lens)
 Operating Temperature0°C – 45°C; Operating Altitude: 0m – 3048m (High-Altitude Mode for >1500m)
 Warranty3-Year Whole Machine Warranty; 20,000hrs Laser Source Warranty (Standard Mode)
Display PerformanceNative ResolutionWUXGA (1920×1200), 2.304 million pixels
 Enhanced Technology4K Enhancement, supports 4K/60Hz input signal
 Aspect Ratio16:10 (compatible with 4:3/16:9/21:9 via digital scaling)
 Color Reproduction10-bit color processing, up to 1.07 billion colors; 100% NTSC gamut
 Color ModesDynamic, Presentation, Cinema, Natural, HDR10, HLG
 HDR SupportHDR10 & HLG, with dynamic tone mapping
Brightness & ContrastWhite Light Output (ISO)5,200 lumens (Standard); 3,640 lumens (Eco)
 Color Light Output5,200 lumens (IDMS 15.4 certified)
 Dynamic ContrastOver 3,500,000:1 (Dynamic Mode, Auto Aperture On)
Optical SystemLCD Panel0.67-inch inorganic poly-silicon TFT active matrix
 Light SourceLaser diode array + reflective fluorescent wheel
 Light Source Life25,000hrs (Standard); 30,000hrs (Eco), maintenance-free
Lens & InstallationLens TypeManual zoom/focus lens (center-aligned)
 Zoom Ratio1.35-2.20:1 (optical)
 Lens ShiftVertical: -50%~+50%; Horizontal: -20%~+20% (manual)
 Projection Size55″-500″ (diagonal); Projection Distance: 1.65m-18.0m
 Installation ModesFront/Rear/Ceiling/Floor; 360° free-angle installation
ConnectivityDigital InterfacesHDMI 2.0 (HDCP 2.3)×2; HDBaseT×1 (100m transmission)
 NetworkRJ45 (Gigabit)×1; Built-in Wi-Fi 6 (IEEE 802.11ax)
 ControlRS-232C×1; PJLink; SNMP; web-based control; NFC quick pairing
 AudioBuilt-in 10W monaural speaker; Audio out (3.5mm)×1
Power & OperationPower SupplyAC 100-240V±10%, 50/60Hz
 Power Consumption370W (Standard); 259W (Eco)
 Noise Level34dB (Standard); 25dB (Eco)
 Startup Time≤8 seconds; supports instant cooling & instant shutdown
