Key Features & Advantages
- WXGA Wide-Screen: 1280×800 resolution, 16:10 aspect ratio for courseware/data.
- 4200 ISO Lumens: Clear display in well-lit spaces (IDMS certified).
- 3LCD Color: 90% NTSC gamut, true-to-life vivid visuals.
- Long Lamp Life: Up to 10,000 hrs (Eco Mode), low maintenance.
- Flexible Installation: 1.2x zoom, vertical shift, multiple mounting modes.
- Rich Connectivity: 2×HDMI, VGA, USB, RJ45 for easy device linking.
Best Applications
- Primary/secondary school classrooms & vocational training centers.
- Small-to-medium business conference rooms & hybrid meetings.
- Community training halls & small lecture halls.
- Home offices & small event spaces.
Category | Subcategory | Specifications |
|---|---|---|

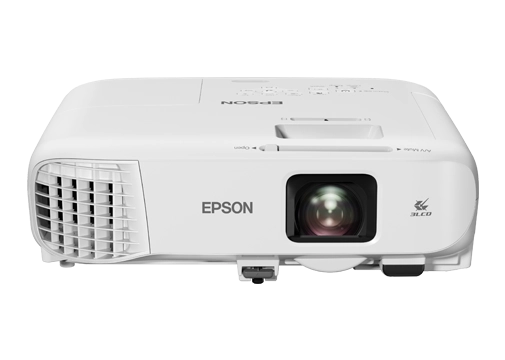

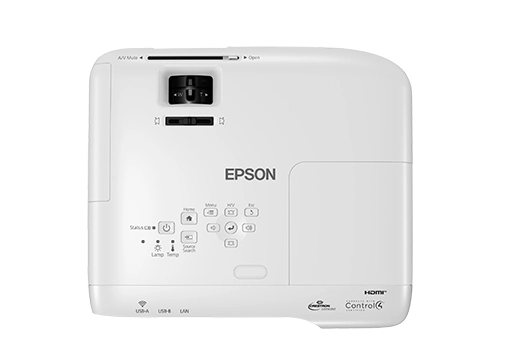

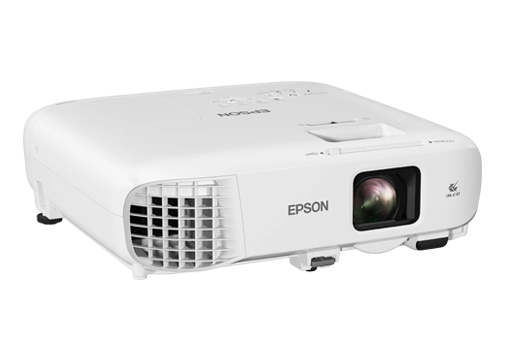

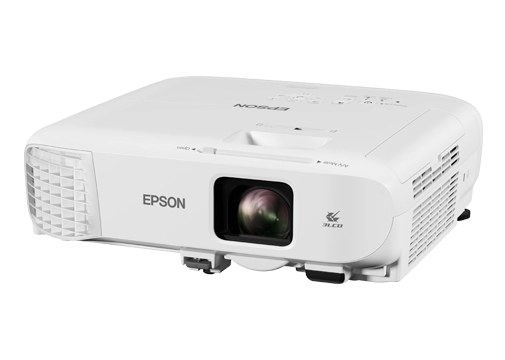

Basic Information | Model Name | CB-982W (China); EB-982W (Global) |
Product Type | 3LCD Projector for Business & Education | |
Dimensions | 395×304×120 mm; Weight: ~4.7 kg | |
Warranty | 2-Year Machine; 6,000 hrs Lamp (Standard) | |
Display Performance | Resolution/Aspect Ratio | WXGA (1280×800); 16:10 (compatible 4:3/16:9) |
Color Reproduction | 8-bit, 90% NTSC; Color Modes: 5 types | |
Brightness & Contrast | ISO Lumens | 4,200 (Standard); 2,940 (Eco) |
Dynamic Contrast | 15,000:1 | |
Optical System | Light Source/Life | UHE Lamp; 6,000 (Std)/10,000 (Eco) hrs |
Lens & Installation | Zoom/Lens Shift | 1.2x optical; Vertical -30%~+30% |
Projection Size/Distance | 30″-300″; 1.0m-11.3m | |
Installation Modes | Front/Rear/Ceiling/Floor | |

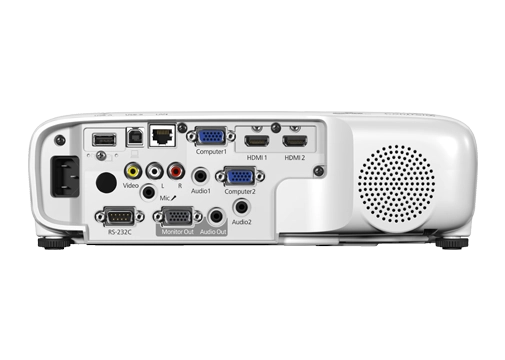

Connectivity | Interfaces | HDMI×2, VGA×1, USB×3, RJ45×1, Audio I/O |
Power & Operation | Power Consumption | 300W (Std); 210W (Eco); 0.5W (Standby) |
Noise/Startup Time | 37dB (Std)/28dB (Eco); ≤30 sec |
